Product Overview

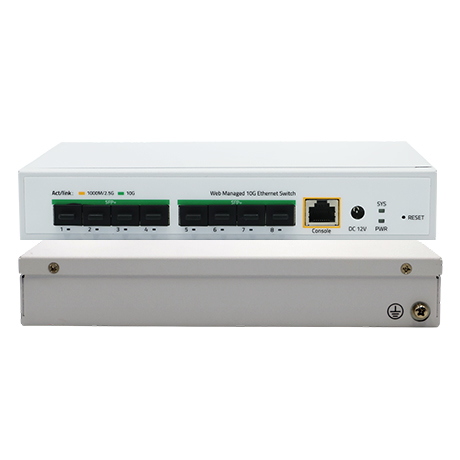

The S5710 series switch is a layer 3 Ethernet switch, owns 10 gigabit uplink for enterprise networks and operator customers,

which can also meet the needs of cost-effective gigabit access. This device uses a high-performance & low-power network

processor, provides gigabit line-speed forwarding performance, supports green Ethernet line sleep capability, which has the

lowest power consumption of the same-level equipment in the industry as well. Supports powerful QoS and ACL functions,

IP+MAC+ Security features such as port binding support service flow classification and packet priority marking.

The product includes an elastic stacking function, which allows multiple devices to be virtualized into a single logical entity.

This not only facilitates the expansion of ports and switching capacity but also enables unified management, upgrades, and

maintenance across devices. It can also support static data packet sampling, SFLOW function, multi-port mirroring analysis

Key Features

Carrier-level equipment stability

* Based on Linux operating system，support IPv4/IPv6 dual protocol stack platform

* Support multiple link redundancy and network redundancy protocols such as STP/RSTP/MSTP/LACP

Stacking Capabilities

* Support Stacking of 8 units through a single IP address

* Support Unified management

* Support Redundancy mechanism

* Support High speed interconnect

Perfect safety mechanism

* Support link protection functions FlexLink, LACP

* Support remote loop detection function

* Support remote user authentication based on Tacacs+, Radius, and Local user authentication

Powerful QoS capabilities

* Support port speed and flow speed limit function

* Support classification based on service flow and Qos flow control function

* Support queue scheduling algorithms such as SP/WRR/SP+WRR

* Support port-based and service flow-based mirroring functions

Rich management protocols

* Support easy-to-use network management function

* Support CLI based on RS232 serial port, Telnet and SSHv2

* Support WEB-based configure operation management, support SNMP V1/V2/V3

* Support remote upgrade or equipment through FTP and TFTP

function, static and flexible QinQ function, strategy-based IPV4/6 unicast routing, and Flexible forwarding strategy.
